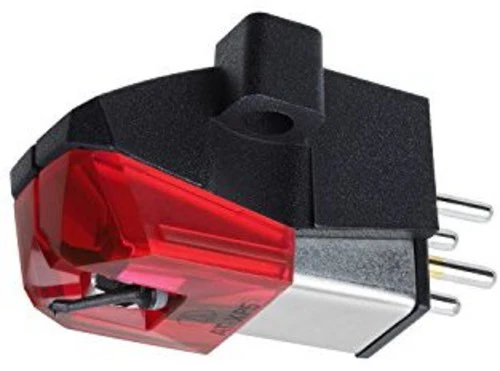

Audio Technica Atxp5 DJ Cartridge Black Red - Audio Technica ATXP5 DJ Cartridge with Elliptical Bonded Stylus 1/2" Mount (Black/Red)
Audio Technica ATXP5 DJ Cartridge Black Red
The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Product Features
Frequency Response: 20-18,000 Hz
Channel Separation: 20 (dB at 1 kHz)
Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Output: 5.5 mV (1 kHz, 5 cm/sec.)
Channel Balance: 2.0 dB (1 kHz)
Stylus Shape: 0.3 x 0.7 mil elliptical
Cantilever: Carbon fiber-reinforced ABS
Mount: Half-inch
Replacement Stylus: ATN-XP5
Coil impedance: 6.7 k ohms (1 kHz)
DC resistance: 990 ohms
Recommended load capacitance: 100 to 200 pF
Coil inductance: 1.0 H (1 kHz)
Vertical tracking angle: 20°
Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Audio Technica Atxp5 DJ Cartridge Black Red - Audio Technica ATXP5 DJ Cartridge with Elliptical Bonded Stylus 1/2" Mount (Black/Red)
Audio Technica Atxp5 DJ Cartridge Black Red - Audio Technica ATXP5 DJ Cartridge with Elliptical Bonded Stylus 1/2" Mount (Black/Red)
Audio Technica ATXP5 DJ Cartridge Black Red
The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Product Features
Frequency Response: 20-18,000 Hz
Channel Separation: 20 (dB at 1 kHz)
Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Output: 5.5 mV (1 kHz, 5 cm/sec.)
Channel Balance: 2.0 dB (1 kHz)
Stylus Shape: 0.3 x 0.7 mil elliptical
Cantilever: Carbon fiber-reinforced ABS
Mount: Half-inch
Replacement Stylus: ATN-XP5
Coil impedance: 6.7 k ohms (1 kHz)
DC resistance: 990 ohms
Recommended load capacitance: 100 to 200 pF
Coil inductance: 1.0 H (1 kHz)
Vertical tracking angle: 20°
Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
Original: $93.45
-65%$93.45
$32.71Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Audio Technica ATXP5 DJ Cartridge Black Red
The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Product Features
Frequency Response: 20-18,000 Hz
Channel Separation: 20 (dB at 1 kHz)
Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
Stylus Construction: Bonded round shank
Recommended Load Impedance: 47,000 ohms
Output: 5.5 mV (1 kHz, 5 cm/sec.)
Channel Balance: 2.0 dB (1 kHz)
Stylus Shape: 0.3 x 0.7 mil elliptical
Cantilever: Carbon fiber-reinforced ABS
Mount: Half-inch
Replacement Stylus: ATN-XP5
Coil impedance: 6.7 k ohms (1 kHz)
DC resistance: 990 ohms
Recommended load capacitance: 100 to 200 pF
Coil inductance: 1.0 H (1 kHz)
Vertical tracking angle: 20°
Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
